服务治理组件Eureka

发表于 分类于 ，
本文字数： 17k 阅读时长 ≈ 15 分钟

Eurka是由Netflix开发的一套具有服务治理功能的组件，Spring Cloud在其基础上进行了二次封装，将其融入到了Spring Cloud微服务体系中。服务治理在任何一个微服务框架中都应是一个基础且重要的功能。

Eureka的服务端和客户端

Eureka主要有两个重要的组成部分：Eureka Server和Eureka Client。顾名思义，Eureka Server，又称服务注册中心，其维护了一个ConcurrentHashMap对象registry，为一个双层map结构（ConcurrentHashMap<String, Map<String, Lease>>），registry外层的key为服务实例Instance注册时提供的AppName，内层的key为该Instance的Id。通过该对象，Eureka Server可以对外提供一个按服务名（AppName）分类组织的服务清单，该清单会通过心跳检测的机制去更新。Eureka Client提供了两个重要的功能：服务获取和服务注册（续约）。其中，服务获取可用于服务消费者，服务注册（续约）可用于服务提供者。

Eureka Server

在一个基础的Spring Boot项目中，在pom.xml文件导入以下依赖：

pom.xml
1
2
3
4
<dependency>
	<groupId>org.springframework.cloud</groupId>
	<artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
</dependency>

然后在该应用的主类中加上@EnableEurekaServer注解，即可开启一个Eureka Server。如果需要对端口等行为进行自定义，可以在application.properties中配置如下：

application.properties
1
2
3
4
5
6
7
8
spring.application.name=eureka-server
server.port=1001

eureka.instance.hostname=peer
#eureka.client.register-with-eureka=false
#eureka.client.fetch-registry=false
eureka.server.renewalPercentThreshold=0.49
eureka.client.serviceUrl.defaultZone=http://peer1:1002/eureka/

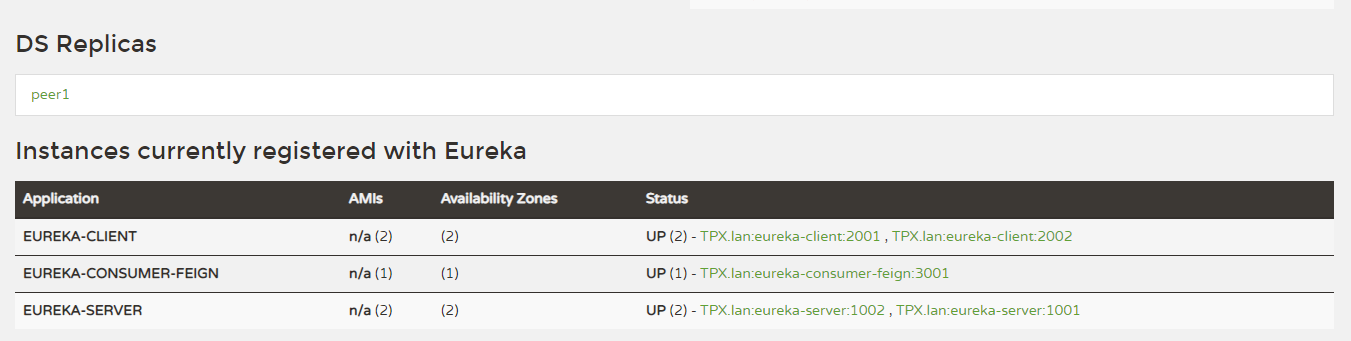

其中eureka.client.serviceUrl.defaultZone一般为本机hostname+端口+/eureka/，本机已搭建了一个高可用的Eureka Server集群，分别有peer和peer1两个节点，两个节点的defaultZone互为对方地址。启动这两个节点，访问http://peer1:1002/eureka/ 或者 http://peer:1001/eureka/ ，可以见到如下界面：

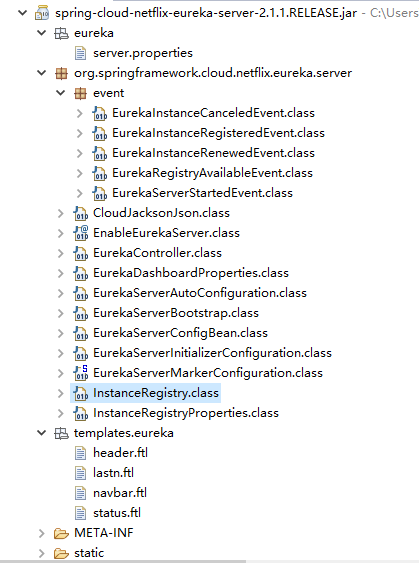

图中可以看出，本机已启动了两个Eureka Server节点，两个Eureka Client节点，以及一个服务消费者节点。先看Eureka Server节点。打开spring-cloud-netflix-eureka的jar包（以2.1.1版本为例），我们可以看到如下的目录结构：

可以看到Eureka Server定义了5个事件，其中三个与Eureka Client相关，分别是EurekaInstanceCanceledEvent（服务的取消）、EurekaInstanceRegisteredEvent（服务的注册）、EurekaInstanceRenewedEvent（服务的续约），EurekaRegistryAvailableEvent和EurekaServerStartedEvent则与Eureka Server自身启动和注册相关。

查看InstanceRegistry类，可以找到跟服务注册、取消、续约相关的代码片段如下：

InstanceRegistry.class
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
@Override
public void register(InstanceInfo info, int leaseDuration, boolean isReplication) {
	handleRegistration(info, leaseDuration, isReplication);
	super.register(info, leaseDuration, isReplication);
}

@Override
public boolean cancel(String appName, String serverId, boolean isReplication) {
	handleCancelation(appName, serverId, isReplication);
	return super.cancel(appName, serverId, isReplication);
}

@Override
public boolean renew(final String appName, final String serverId,
		boolean isReplication) {
	log("renew " + appName + " serverId " + serverId + ", isReplication {}"
			+ isReplication);
	List<Application> applications = getSortedApplications();
	for (Application input : applications) {
		if (input.getName().equals(appName)) {
			InstanceInfo instance = null;
			for (InstanceInfo info : input.getInstances()) {
				if (info.getId().equals(serverId)) {
					instance = info;
					break;
				}
			}
			publishEvent(new EurekaInstanceRenewedEvent(this, appName, serverId,
					instance, isReplication));
			break;
		}
	}
	return super.renew(appName, serverId, isReplication);
}

其中，服务注册和取消的时候，都会先通过Spring Context发布一个事件，通知网络中的其他Eureka Server节点，然后再执行相应的注册或取消动作。服务续约则会从已存储的服务列表中找到appName与serverId一致的那个服务实例，发布续约事件，然后执行续约动作。以注册动作为例，根据super.register(info, leaseDuration, isReplication)找到eureka-core包中的AbstractInstanceRegistry类，可以看到register动作的函数体为：

AbstractInstanceRegistry.class
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
public void register(InstanceInfo registrant, int leaseDuration, boolean isReplication) {
    try {
        read.lock();
        Map<String, Lease<InstanceInfo>> gMap = registry.get(registrant.getAppName());
        REGISTER.increment(isReplication);
        if (gMap == null) {
            final ConcurrentHashMap<String, Lease<InstanceInfo>> gNewMap = new ConcurrentHashMap<String, Lease<InstanceInfo>>();
            gMap = registry.putIfAbsent(registrant.getAppName(), gNewMap);
            if (gMap == null) {
                gMap = gNewMap;
            }
        }
        Lease<InstanceInfo> existingLease = gMap.get(registrant.getId());
        // Retain the last dirty timestamp without overwriting it, if there is already a lease
        if (existingLease != null && (existingLease.getHolder() != null)) {

             ...

            // this is a > instead of a >= because if the timestamps are equal, we still take the remote transmitted
            // InstanceInfo instead of the server local copy.
             ...

        } else {
            // The lease does not exist and hence it is a new registration
            synchronized (lock) {
                if (this.expectedNumberOfClientsSendingRenews > 0) {
                    // Since the client wants to register it, increase the number of clients sending renews
                    this.expectedNumberOfClientsSendingRenews = this.expectedNumberOfClientsSendingRenews + 1;
                    updateRenewsPerMinThreshold();
                }
            }
            logger.debug("No previous lease information found; it is new registration");
        }
        Lease<InstanceInfo> lease = new Lease<InstanceInfo>(registrant, leaseDuration);
        if (existingLease != null) {
            lease.setServiceUpTimestamp(existingLease.getServiceUpTimestamp());
        }
        gMap.put(registrant.getId(), lease);
        synchronized (recentRegisteredQueue) {
            recentRegisteredQueue.add(new Pair<Long, String>(
                    System.currentTimeMillis(),
                    registrant.getAppName() + "(" + registrant.getId() + ")"));
        }
        // This is where the initial state transfer of overridden status happens

         ...

        // If the lease is registered with UP status, set lease service up timestamp
        if (InstanceStatus.UP.equals(registrant.getStatus())) {
            lease.serviceUp();
        }
        registrant.setActionType(ActionType.ADDED);
        recentlyChangedQueue.add(new RecentlyChangedItem(lease));

         ...

    } finally {
        read.unlock();
    }
}

该函数中，Eureka Server维护了一个上文中提到的ConcurrentHashMap对象registry，以及recentRegisteredQueue和recentlyChangedQueue两个序列。在register动作发生时，Eureka Server首先会去检查registry对象，查看需要注册的InstanceInfo是否存在，如果存在，则修改对应的状态、时间等相关信息；如果不存在，则增加，并在recentRegisteredQueue和recentlyChangedQueue中登记。

服务取消动作和续约动作分别对应该类中的internalCancel和renew函数。

Eureka Client

在微服务体系中，除去Eureka Server之外的服务，都具有Eureka Client的属性，因为它们要么是服务提供者，要么是服务消费者，或者两者都是。

服务提供者

在pom.xml中导入以下依赖：

pom.xml
1
2
3
4
<dependency>
	<groupId>org.springframework.cloud</groupId>
	<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>

并在应用主类中添加@EnableDiscoveryClient注解，即可开启一个Eureka Client。如果需要对端口等行为进行自定义，可以在application.properties中配置如下：

application.properties
1
2
3
4
5
6
spring.application.name=eureka-client
server.port=2001
eureka.client.serviceUrl.defaultZone=http://peer:1001/eureka/,http://peer1:1002/eureka/
#eureka.client.healthcheck.enabled=true
#eureka.instance.statusPageUrlPath=http://localhost:1001/info
#eureka.instance.healthCheckUrlPath=http://localhost:1001/health

作为服务提供者，则需要提供接口供服务消费者来消费。本例中以rest请求的方式定义一个最简单的接口，示例如下：

EcController.java
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
package com.tpx.ms.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cloud.client.discovery.DiscoveryClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class EcController {
	@Autowired
	private DiscoveryClient discoveryClient;

	@GetMapping("/dc")
	public String dc() {
		String services = "Services: " + discoveryClient.getServices();
		System.out.println(services);
		return services;
	}
}

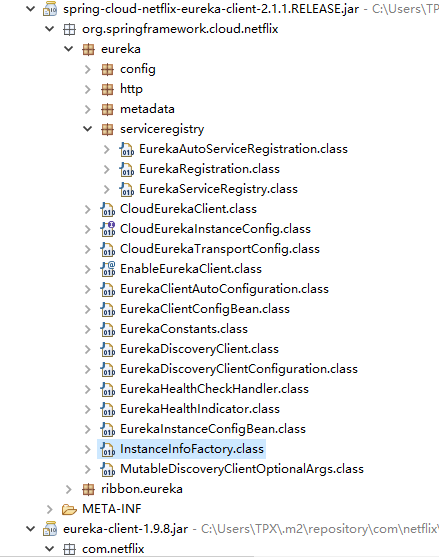

通过注入DiscoveryClient对象，可以得到这个Eureka Client的相关信息。打开spring-cloud-netflix-eureka-client的jar包，可以看到如下的目录结构：

图中可以看到spring-cloud-netflix-eureka-client只是Spring Cloud的封装，图下的位置里还有一个eureka-client的jar包。查看DiscoveryClient类的构造方法，代码如下：

DiscoveryClient.class
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
@Inject
DiscoveryClient(ApplicationInfoManager applicationInfoManager, EurekaClientConfig config, AbstractDiscoveryClientOptionalArgs args,
                Provider<BackupRegistry> backupRegistryProvider) {

     ...

    if (config.shouldFetchRegistry()) {
        this.registryStalenessMonitor = new ThresholdLevelsMetric(this, METRIC_REGISTRY_PREFIX + "lastUpdateSec_", new long[]{15L, 30L, 60L, 120L, 240L, 480L});
    } else {
        this.registryStalenessMonitor = ThresholdLevelsMetric.NO_OP_METRIC;
    }

    if (config.shouldRegisterWithEureka()) {
        this.heartbeatStalenessMonitor = new ThresholdLevelsMetric(this, METRIC_REGISTRATION_PREFIX + "lastHeartbeatSec_", new long[]{15L, 30L, 60L, 120L, 240L, 480L});
    } else {
        this.heartbeatStalenessMonitor = ThresholdLevelsMetric.NO_OP_METRIC;
    }

    logger.info("Initializing Eureka in region {}", clientConfig.getRegion());

    if (!config.shouldRegisterWithEureka() && !config.shouldFetchRegistry()) {
        logger.info("Client configured to neither register nor query for data.");
        scheduler = null;
        heartbeatExecutor = null;
        cacheRefreshExecutor = null;
        eurekaTransport = null;
        instanceRegionChecker = new InstanceRegionChecker(new PropertyBasedAzToRegionMapper(config), clientConfig.getRegion());

        // This is a bit of hack to allow for existing code using DiscoveryManager.getInstance()
        // to work with DI'd DiscoveryClient
        DiscoveryManager.getInstance().setDiscoveryClient(this);
        DiscoveryManager.getInstance().setEurekaClientConfig(config);

        initTimestampMs = System.currentTimeMillis();
        logger.info("Discovery Client initialized at timestamp {} with initial instances count: {}",
                initTimestampMs, this.getApplications().size());

        return;  // no need to setup up an network tasks and we are done
    }

    try {
        // default size of 2 - 1 each for heartbeat and cacheRefresh
        scheduler = Executors.newScheduledThreadPool(2,
                new ThreadFactoryBuilder()
                        .setNameFormat("DiscoveryClient-%d")
                        .setDaemon(true)
                        .build());

        heartbeatExecutor = new ThreadPoolExecutor(
                1, clientConfig.getHeartbeatExecutorThreadPoolSize(), 0, TimeUnit.SECONDS,
                new SynchronousQueue<Runnable>(),
                new ThreadFactoryBuilder()
                        .setNameFormat("DiscoveryClient-HeartbeatExecutor-%d")
                        .setDaemon(true)
                        .build()
        );  // use direct handoff

        cacheRefreshExecutor = new ThreadPoolExecutor(
                1, clientConfig.getCacheRefreshExecutorThreadPoolSize(), 0, TimeUnit.SECONDS,
                new SynchronousQueue<Runnable>(),
                new ThreadFactoryBuilder()
                        .setNameFormat("DiscoveryClient-CacheRefreshExecutor-%d")
                        .setDaemon(true)
                        .build()
        );  // use direct handoff

        eurekaTransport = new EurekaTransport();
        scheduleServerEndpointTask(eurekaTransport, args);

         ...

    } catch (Throwable e) {
        throw new RuntimeException("Failed to initialize DiscoveryClient!", e);
    }

    if (clientConfig.shouldFetchRegistry() && !fetchRegistry(false)) {
        fetchRegistryFromBackup();
    }

    // call and execute the pre registration handler before all background tasks (inc registration) is started
    if (this.preRegistrationHandler != null) {
        this.preRegistrationHandler.beforeRegistration();
    }

    if (clientConfig.shouldRegisterWithEureka() && clientConfig.shouldEnforceRegistrationAtInit()) {
        try {
            if (!register() ) {
                throw new IllegalStateException("Registration error at startup. Invalid server response.");
            }
        } catch (Throwable th) {
            logger.error("Registration error at startup: {}", th.getMessage());
            throw new IllegalStateException(th);
        }
    }

    // finally, init the schedule tasks (e.g. cluster resolvers, heartbeat, instanceInfo replicator, fetch
    initScheduledTasks();

     ...

}

代码有部分精简，从这个函数可以看出，在Eureka Client初始化的过程中，会先对一系列参数进行检查，其中最重要的两个参数为fetchRegistry和registerWithEureka，默认为ture。参数检查完毕之后，会执行scheduleServerEndpointTask函数，该方法会根据参数给EurekaTransport对象赋值，用于传输到Eureka Server端；然后执行initScheduledTasks函数，部分代码如下：

DiscoveryClient.class
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
private void initScheduledTasks() {
    if (clientConfig.shouldFetchRegistry()) {
        // registry cache refresh timer
        int registryFetchIntervalSeconds = clientConfig.getRegistryFetchIntervalSeconds();
        int expBackOffBound = clientConfig.getCacheRefreshExecutorExponentialBackOffBound();
        scheduler.schedule(
                new TimedSupervisorTask(
                        "cacheRefresh",
                        scheduler,
                        cacheRefreshExecutor,
                        registryFetchIntervalSeconds,
                        TimeUnit.SECONDS,
                        expBackOffBound,
                        new CacheRefreshThread()
                ),
                registryFetchIntervalSeconds, TimeUnit.SECONDS);
    }

    if (clientConfig.shouldRegisterWithEureka()) {
        int renewalIntervalInSecs = instanceInfo.getLeaseInfo().getRenewalIntervalInSecs();
        int expBackOffBound = clientConfig.getHeartbeatExecutorExponentialBackOffBound();
        logger.info("Starting heartbeat executor: " + "renew interval is: {}", renewalIntervalInSecs);

        // Heartbeat timer
        scheduler.schedule(
                new TimedSupervisorTask(
                        "heartbeat",
                        scheduler,
                        heartbeatExecutor,
                        renewalIntervalInSecs,
                        TimeUnit.SECONDS,
                        expBackOffBound,
                        new HeartbeatThread()
                ),
                renewalIntervalInSecs, TimeUnit.SECONDS);

        // InstanceInfo replicator
        instanceInfoReplicator = new InstanceInfoReplicator(
                this,
                instanceInfo,
                clientConfig.getInstanceInfoReplicationIntervalSeconds(),
                2); // burstSize

        statusChangeListener = new ApplicationInfoManager.StatusChangeListener() {
            @Override
            public String getId() {
                return "statusChangeListener";
            }

            @Override
            public void notify(StatusChangeEvent statusChangeEvent) {

                 ...

            }
        };

         ...

        } else {
        logger.info("Not registering with Eureka server per configuration");
    }

}

该函数中有两个重要的if分支，按顺序分别对应服务获取、服务注册（续约）功能，需要注意的是，服务获取只有cacheRefresh这个定时任务，而服务注册（续约）则拥有heartbeat定时任务、InstanceInfoReplicator、StatusChangeListener等功能。在InstanceInfoReplicator实例中，有一个定时任务会执行register函数，该函数的作用是将client自身的instanceinfo以rest请求的方式发送给Server端，从而完成注册。heartbeat定时任务则利用心跳机制来进行服务续约。

服务消费者

新建服务提供者的步骤也可用于新建服务消费者，不同的是，我们需要消费服务提供者提供的dc接口。在Spring Boot项目中定义一个interface用于访问dc接口，代码如下：

Finterface.java
1
2
3
4
5
6
7
8
9
10
package com.tpx.ms.restinterface;

import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.GetMapping;

@FeignClient("eureka-client")
public interface Finterface {
	@GetMapping("/dc")
    String consumer();
}

然后再定义一个Controller用于调用该interface，代码如下:

FController.java
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
package com.tpx.ms.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class FController {

	@Autowired
	com.tpx.ms.restinterface.Finterface Finterface;

	@GetMapping("/consumer")
    public String dc() {
        return Finterface.consumer();
    }
}

经过以上对服务提供者的分析，可以得知，严格意义上的服务消费者，其实只需要开启服务获取的功能即可。在initScheduledTasks函数中，第一个服务获取的if分支中提供了一个cacheRefresh的定时任务，该任务会定时获取Eureka Server端的服务提供者列表，存储在本地并定期刷新。通过这个机制，我们可以实现客户端负载均衡。

其他

  • 更多关于Eureka Server和Eureka Client的配置相关信息，可以查看EurekaServerConfigBean和EurekaClientConfigBean的源码；

  • Eureka Client配置时，还有关于Region和Zone的配置，本文不再展开；

  • 各节点的/info和/heath信息需配合spring-boot-starter-actuator使用。

0%
